Model 139A Drawer Lock Full Zinc Alloy Chrome Plated Two‑Turn Two‑Stage Latch for Office Filing Cabinet
Cylinder Length
Variants
Wholesale Model 139A full zinc alloy drawer lock with two‑turn two‑stage long latch. 22/26/32/38mm cylinder length, chrome plated, KD & KA key for office desk, filing cabinet bulk order.
Product Description

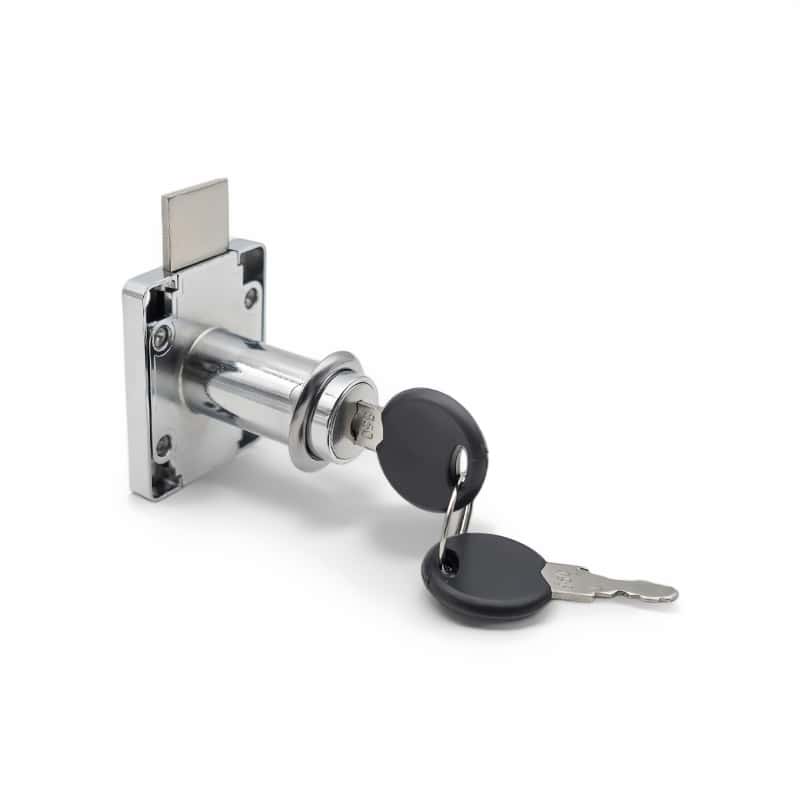

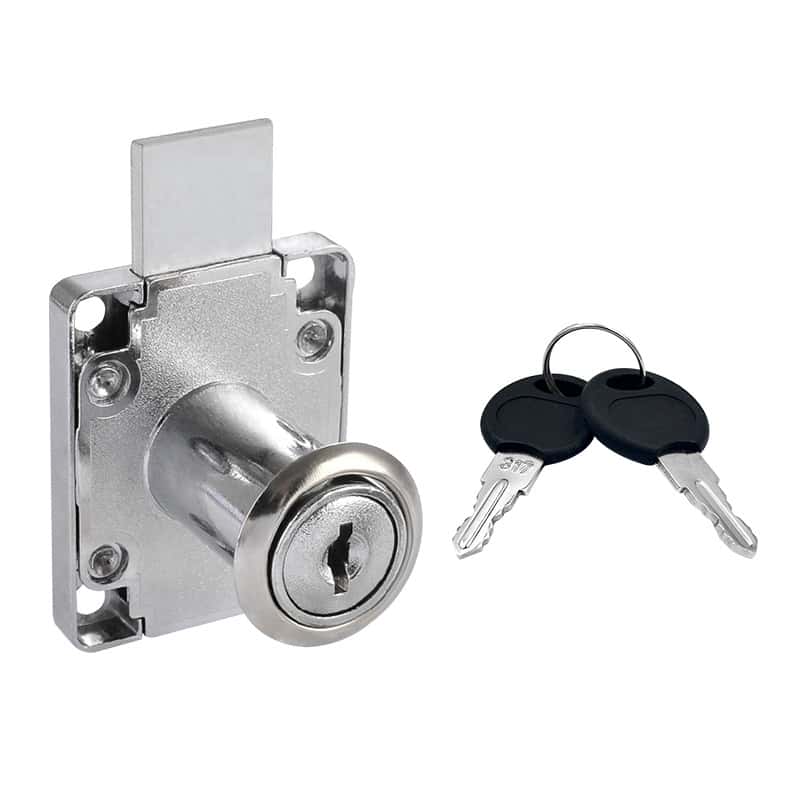

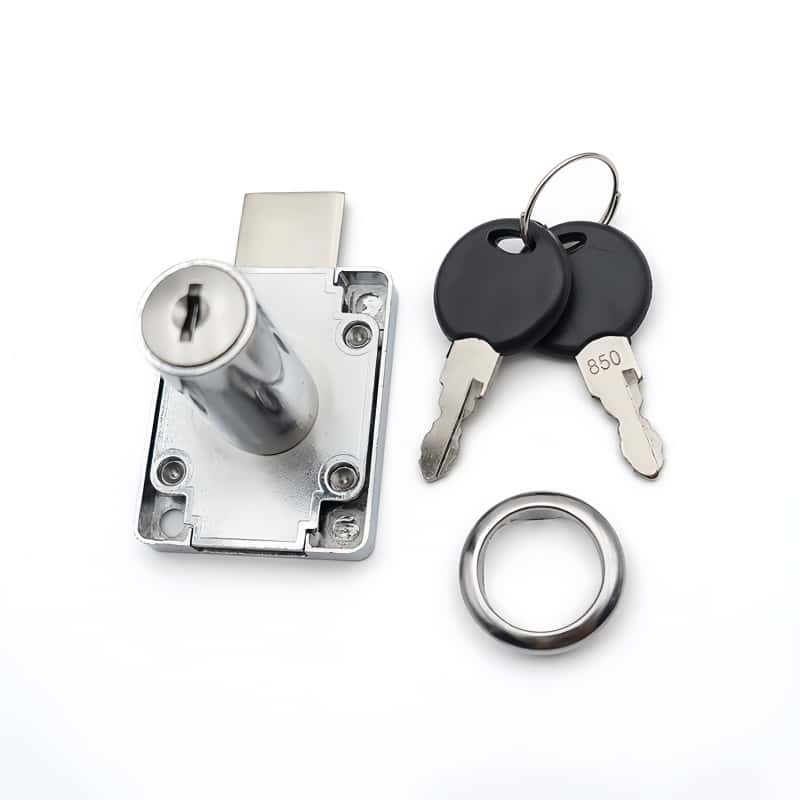

Model 139A Full Zinc‑Alloy Drawer Lock — Chrome Plated
Core Feature: Two‑Turn Two‑Stage Long Latch
8 mm half‑throw & 16 mm full‑throw latch travel. Key is removable both at half‑lock and full‑lock position, ideal for office desk, filing cabinet and commercial furniture projects.
Notice: Cylinder length values are model‑specific. Dimensions for 139A, 139AC and 139C are NOT interchangeable. Please choose in‑stock cylinder length from variant dropdown.
- ✅ Material: Full zinc‑alloy housing & cylinder

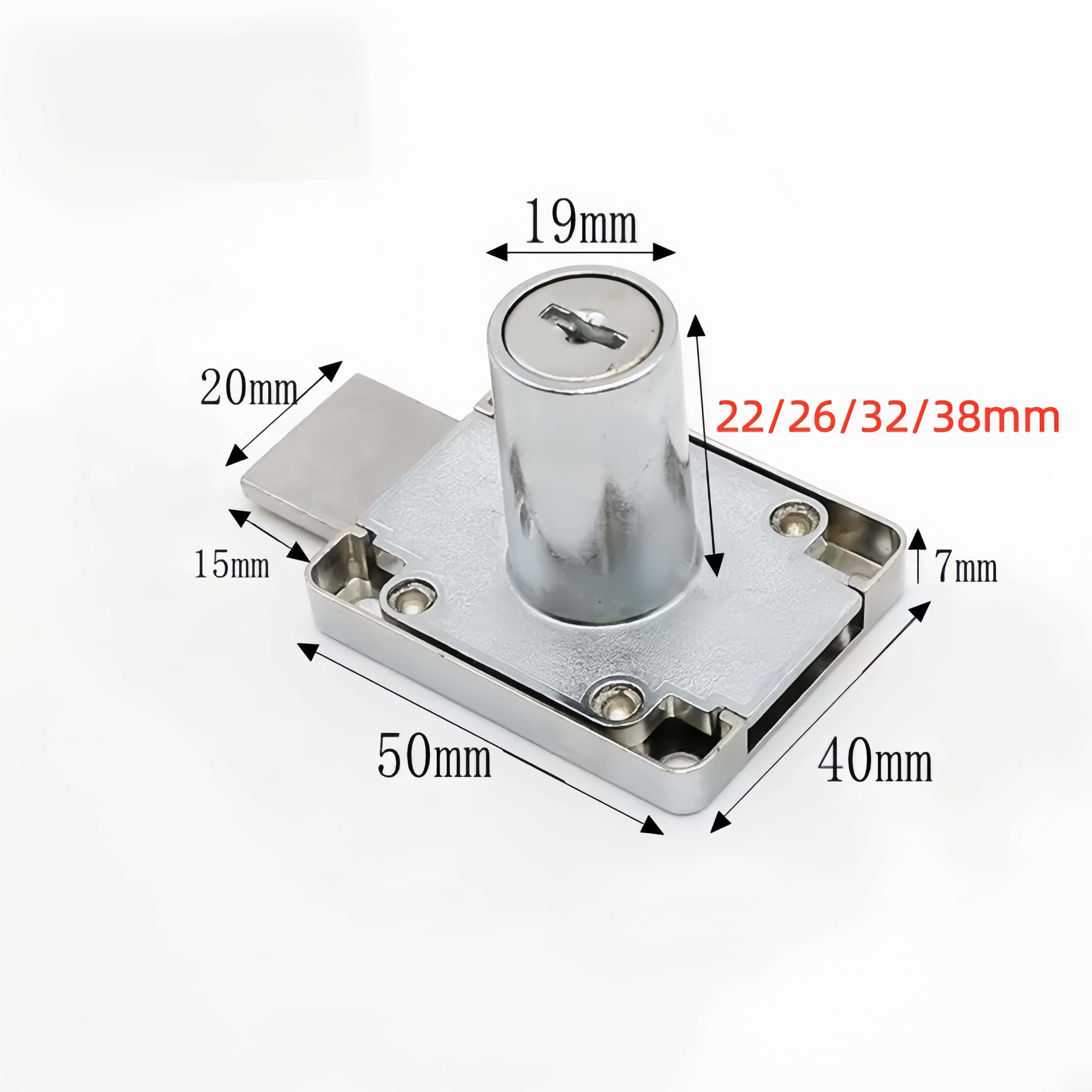

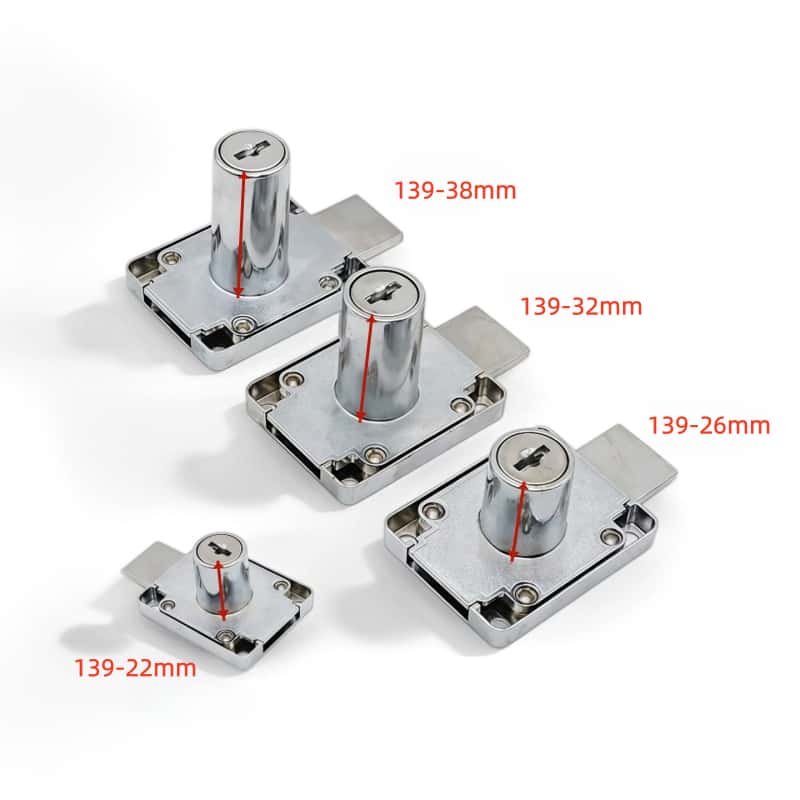

- ✅ Cylinder Length: 22mm / 26mm / 32mm / 38mm for various cabinet panel thickness
- ✅ Finish: Chrome Plated
- ✅ Latch: Two‑turn two‑stage long latch, key removable at dual locking positions
- ✅ Key Option: Keyed‑Different(KD) / Keyed‑Alike(KA) available for bulk project
- ✅ Application: Office desk, filing cabinet, wooden drawer, storage cabinet
- ✅ OEM & private‑label service supported for wholesale order
| Model No. | 139A |
| Housing Material | Full Zinc Alloy |
| Cylinder Material | Full Zinc Alloy |
| Latch Type | Two‑Turn Two‑Stage Long Latch, 8mm half‑throw /16mm full‑throw |
| Cylinder Length | 22mm,26mm,32mm,38mm |
| Surface Finish | Chrome Plated |
| Key Mode | Keyed‑Different (KD), Keyed‑Alike (KA) |
| Application | Office Desk, Filing Cabinet, Wooden Drawer, Furniture Cabinet |
| Mounting | Screw mounting |
