288 Front‑Mount Triple Linkage Cabinet Lock, Zinc Alloy Chrome 3‑Drawer Synchronous Desk Lock, Aluminum 500mm Linkage Bar, Cylinder Length 16mm 19mm for Office Furniture
288 zinc alloy chrome front‑mount triple linkage lock, equipped with standard 500mm aluminum linkage bar, optional cylinder length 16mm,19mm. One key controls three drawers synchronously, widely used for office multi‑drawer desk, B2B wholesale hardware supply.
Product Description

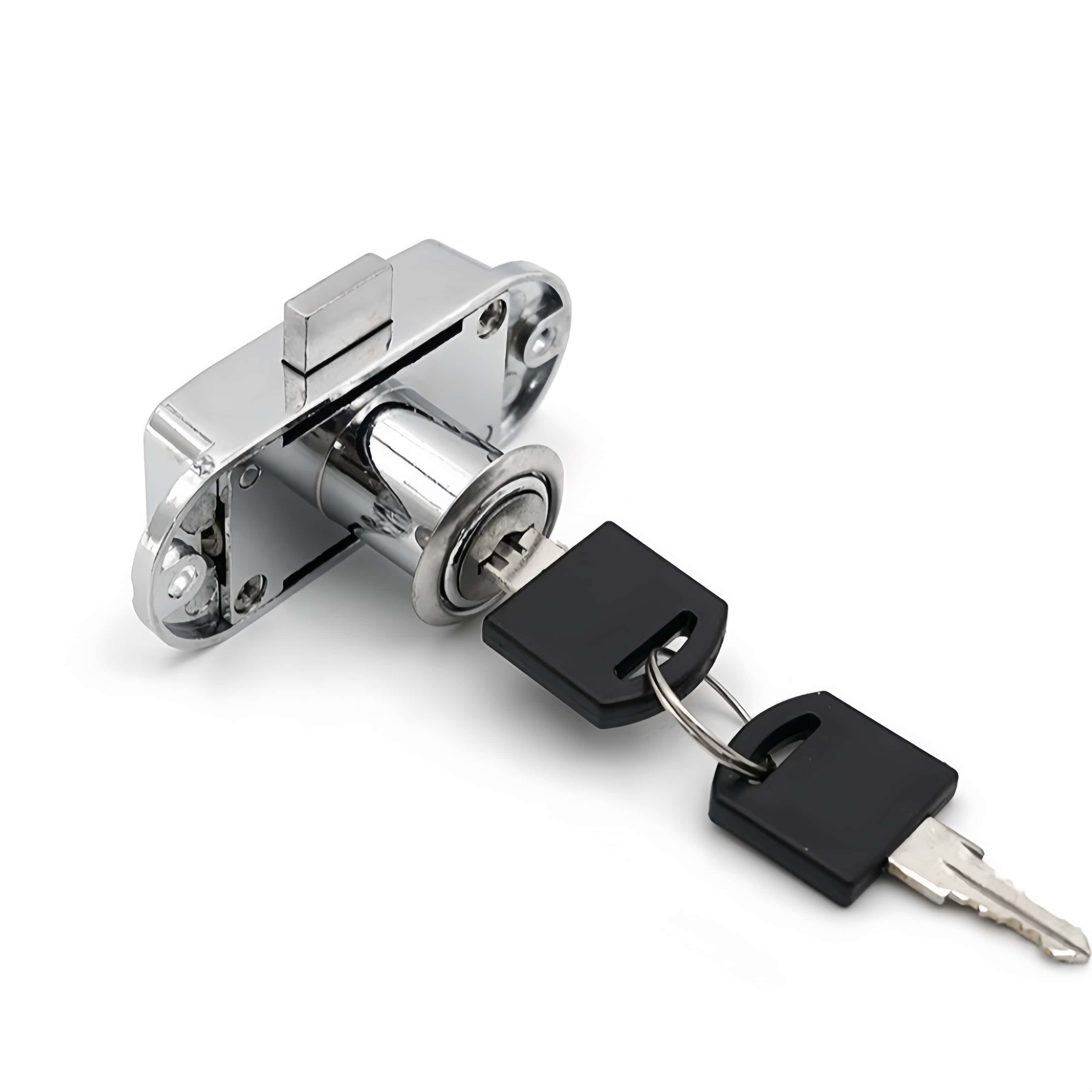

288 Front‑Mount Triple Linkage Cabinet Lock
288 front‑mount triple linkage lock is special‑purpose hardware for multi‑drawer office desk. Adopts lightweight aluminum linkage‑bar transmission structure, one single key can lock & unlock three drawers at the same time. Standard linkage bar length 500mm, can be cut to fit different desk width. Two cylinder‑length options for different desk panel thickness, widely applied for metal & wooden office three‑drawer desks.
Main Features
- Lock cylinder housing: high‑quality zinc alloy; linkage bar: aluminum material; latch parts: iron
- Surface treatment: bright chrome‑plated finish for rust‑resistance and long service life
- Unique triple‑link synchronous mechanism: one‑key control for three drawers open & lock together
- Standard aluminum linkage bar: 500mm length, customizable by cutting for various desk dimension
- Optional cylinder length: 16mm / 19mm to fit different desk front‑panel thickness
- Each lock set supplied with 2 keys; keyed‑alike service available for bulk project orders

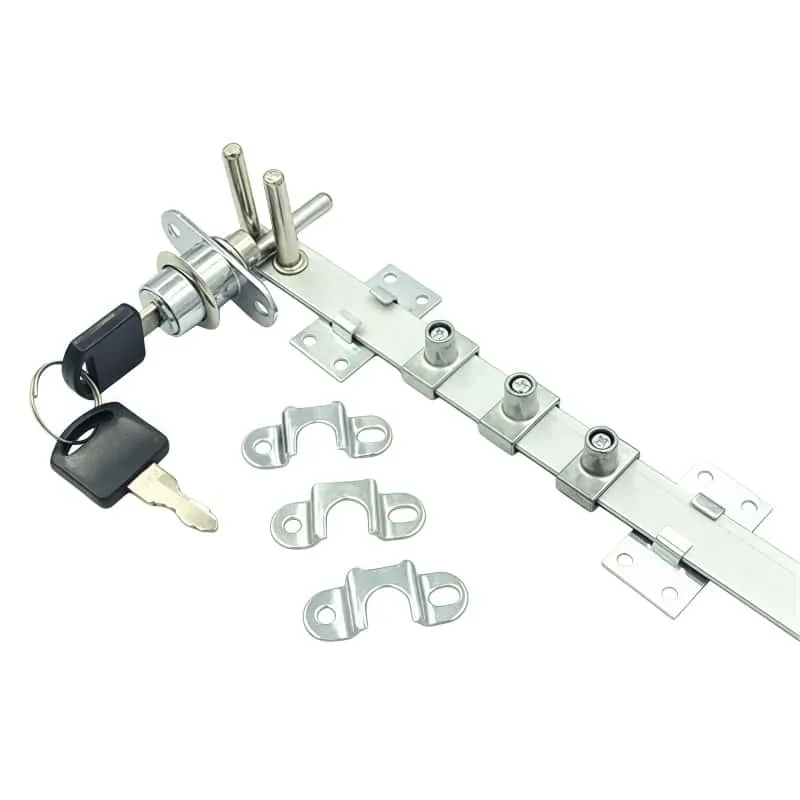

- Complete linkage accessories included, convenient for assembly on office desk production line

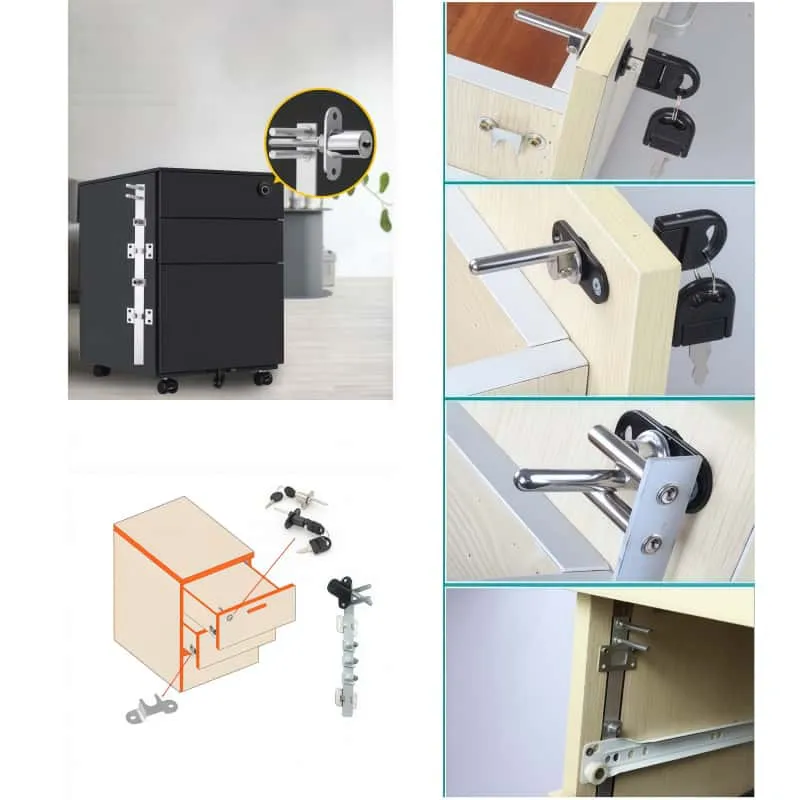

- Application: 3‑drawer office desk, multi‑drawer cabinet, staff work table, office furniture project
Specification Table
| Model | 288‑16 / 288‑19 |
| Material | Zinc Alloy Lock Head + Aluminum Linkage Bar + Iron Latch Parts |
| Surface Finish | Chrome Plated |

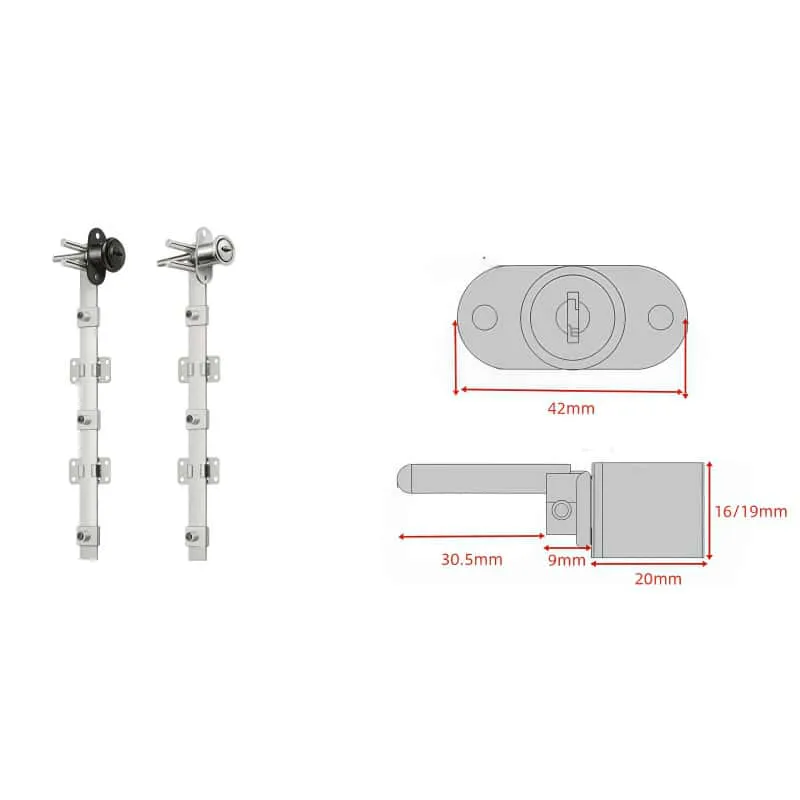

| Cylinder Length | 16mm / 19mm (variant selectable) |
| Standard Linkage Bar Length | 500mm (cut‑to‑length available) |
| Working Principle | One‑key synchronous control for three drawers |
| Keys | 2 pcs per set, keyed‑alike available for bulk orders |
| Application | Office three‑drawer desk, multi‑drawer cabinet, office furniture manufacturing |
Order & Shipping Info
- MOQ: Negotiable for B2B wholesale order
- Sample: Sample set available for quality evaluation & furniture testing
- Lead time: Determined by total order quantity
- Custom Service: Support keyed‑alike, cut‑to‑size linkage bar, mixed‑container loading
Related Products
108 Side Mount Triple Linkage Cabinet Lock, Zinc Alloy Chrome 3‑Drawer Synchronous Desk Lock, 500mm Aluminum Linkage Bar, Customizable, Cylinder 16mm 19mm for Office Furniture
108 side‑mount triple linkage lock with standard 500mm aluminum linkage bar, support bar cutting & OEM customization. Optional 16mm /19mm cylinder length, one‑key control for three drawers. B2B wholesale office furniture hardware.
Model 368 Chrome Vertical Heaven‑Earth Linkage Cabinet Lock, Iron Housing Zinc Alloy Fittings for Tall Wardrobe & Filing Cabinet
Model 368 chrome‑plated vertical heaven‑earth linkage cabinet lock, multi‑point high‑security locking for wardrobe and filing cabinet, wholesale furniture hardware, OEM ODM acceptable.

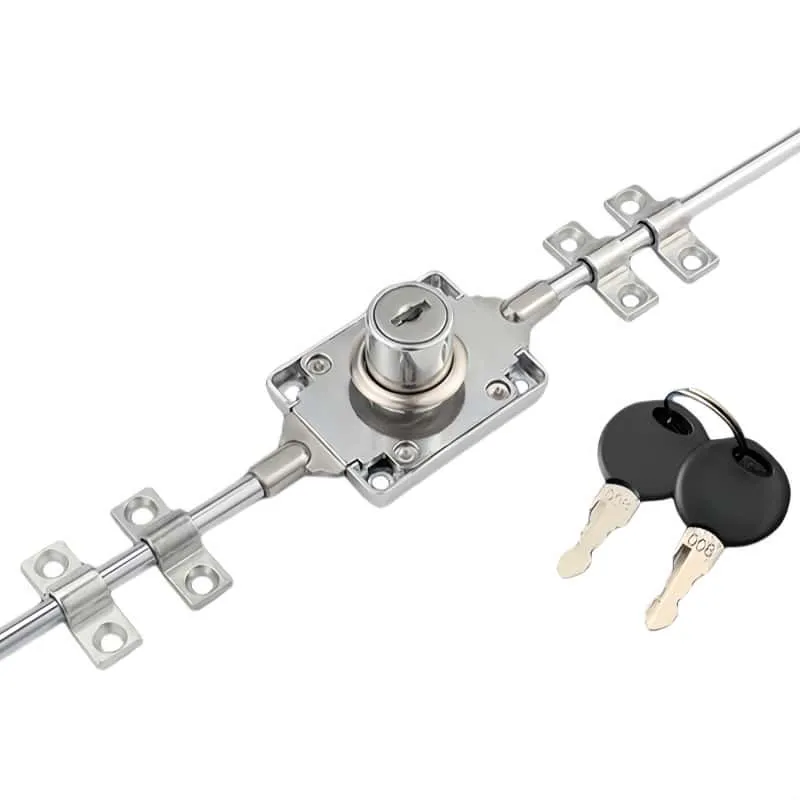

Model 168 Rod‑Control Cabinet Lock Zinc Alloy Lock‑Body Iron Housing Chrome Plated Multi‑Point Vertical Rod Lock for Tall Filing Cabinet
